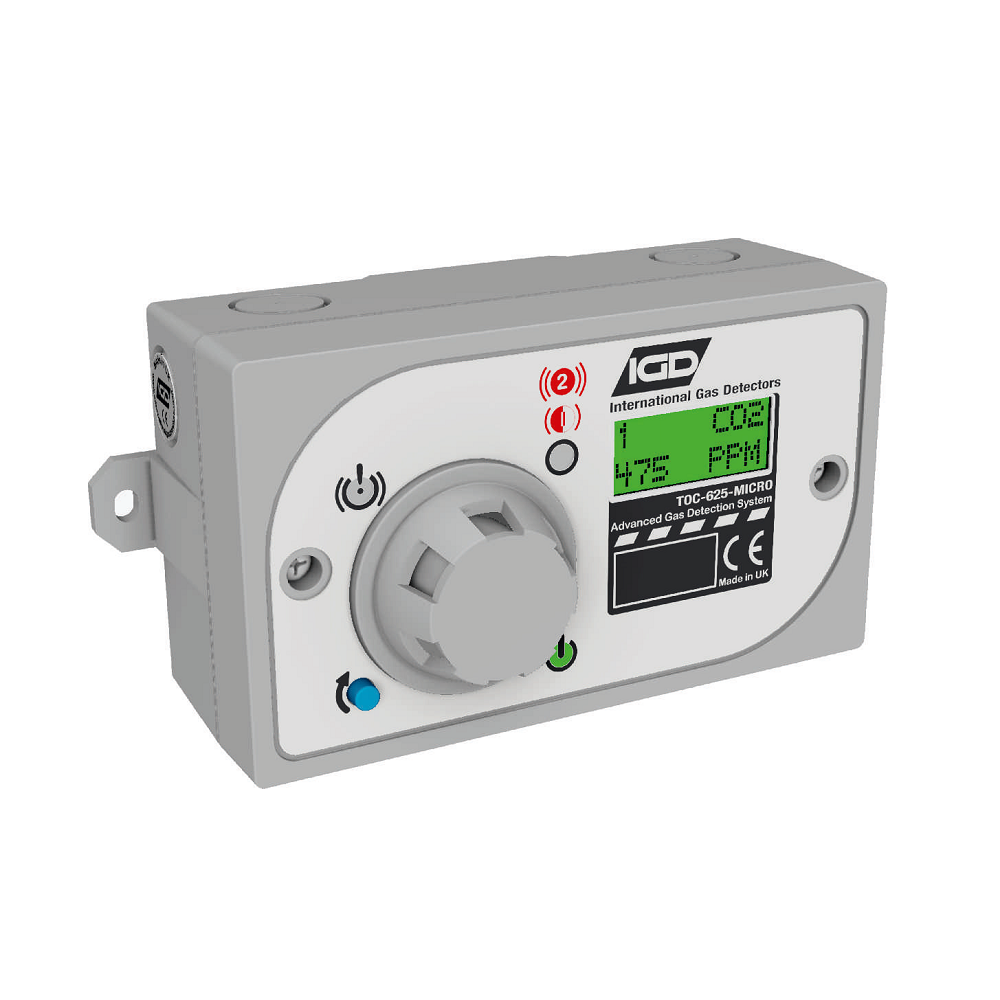

Product Image

Tocsin 625 Control Panel

The Tocsin 625 system is designed for easy installation with auto setup/configuration features for up to 8 devices. An addressable gas controller requires only a single cable to interconnect controller with detectors or relay modules.

Upto 6 different gases can be monitored on the gas control panel.

  • Easy installaiton - automatic setup
  • Control up to 8 addressable devices
  • Up to 2 relay modules
  • Pre-calibrated gas detectors
  • System requires only a single interconnected 4 core cable
  • Wall mounted
  • 24V DC as standard or 110/230V AC (using external power option)
The Tocsin 625 is designed for small standalone installations and is widely used in following applications -
  • Plant rooms
  • Car parks
  • Boiler Rooms
  • Swimming pools
  • Gas bottle stores
  • Laboratories
  • Schools, Colleges and Universities
  • Restaurants & Commercial Kitchens

Power

24V DC - Mirco Version

110/230V AC 50/60Hz 25W - Standard Version
Construction ABS
Display

2 Lines x 8 Digit LCD Display

Multi-Colour Backlight (Red-Alarm, Yellow-Fault, Blue-Normal)
User IGD Jog Wheel Option Select
Outputs

2 off SPCO Relays 4A Non-Inductive - User Configurable

3 off 4-20mA Linear Outputs - User Configurable
Output I/O

Sounder 80dB @ 100mm (Mutable)

RS485 Port Modbus
Inputs

8 off Addressable Series Detectors or I/O Modules
Temperature -5 to 55 Deg C
Humidity 0-95% RH Non-Condensing
Sealing IP54
Mounting Wall Mount
Weight

150g - Micro Version

840g - Standard Version





Main Product

Product Code Description
TOC-625-MIC T625 8-Channel Control Panel 24V DC
5685401 T625 8-Channel Control Panel 230V AC 25W
