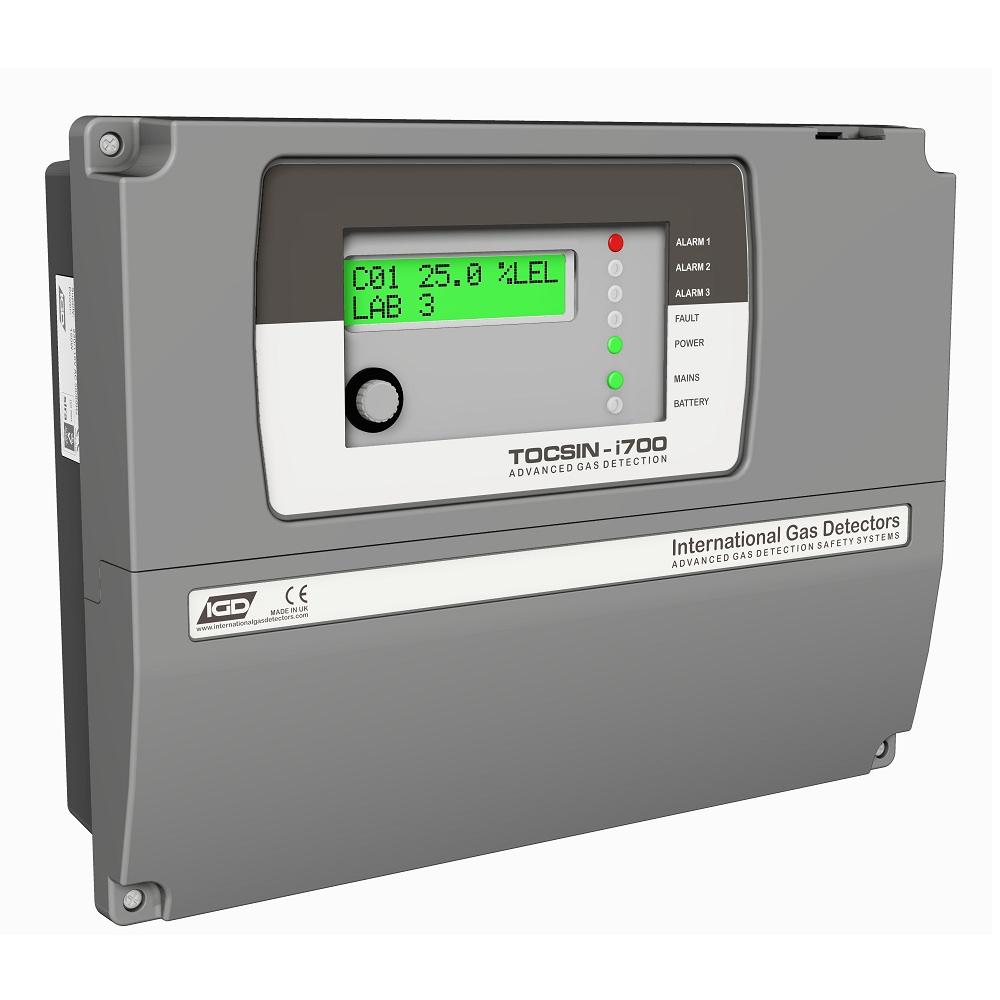

The i700 Control Panel is an multi-channel addressable and analogue controller. The panel is equiped with built in relays, RS485 & 4-20mA input ports with maximum capacity of 64 devices.
110/230V AC 50/60Hz 150W
24V DC Option
2 Lines x 16 Digit LCD Display
Multi-Color Backlight ((Red-Alarm, Yellow-Fault, Blue-Normal)
3 off SPCO Relays 4A Non-Inductive User Configurable
1 off Fault Relay SPCO Relays 4A Non-Inductive
1 off Solid State Beacon Sounder Output
Additional Digital Inputs/Relay Outputs Can Be Added To Highways if Required
Key-switch Input
Remote Reset Facility
Remote Inhibit Facility
1 off Addressable Highway up to 32 Detectors/Devices
1 off RS485 Ports Modbus or Addressable Highway up to 32 Detectors/Devices
8 off 4-20mA Analogue Inputs
Max Detector/Device Count 64
-5 to 40 Deg C Full Specification.
To 55 Deg C De-Rate PSU by 15%
