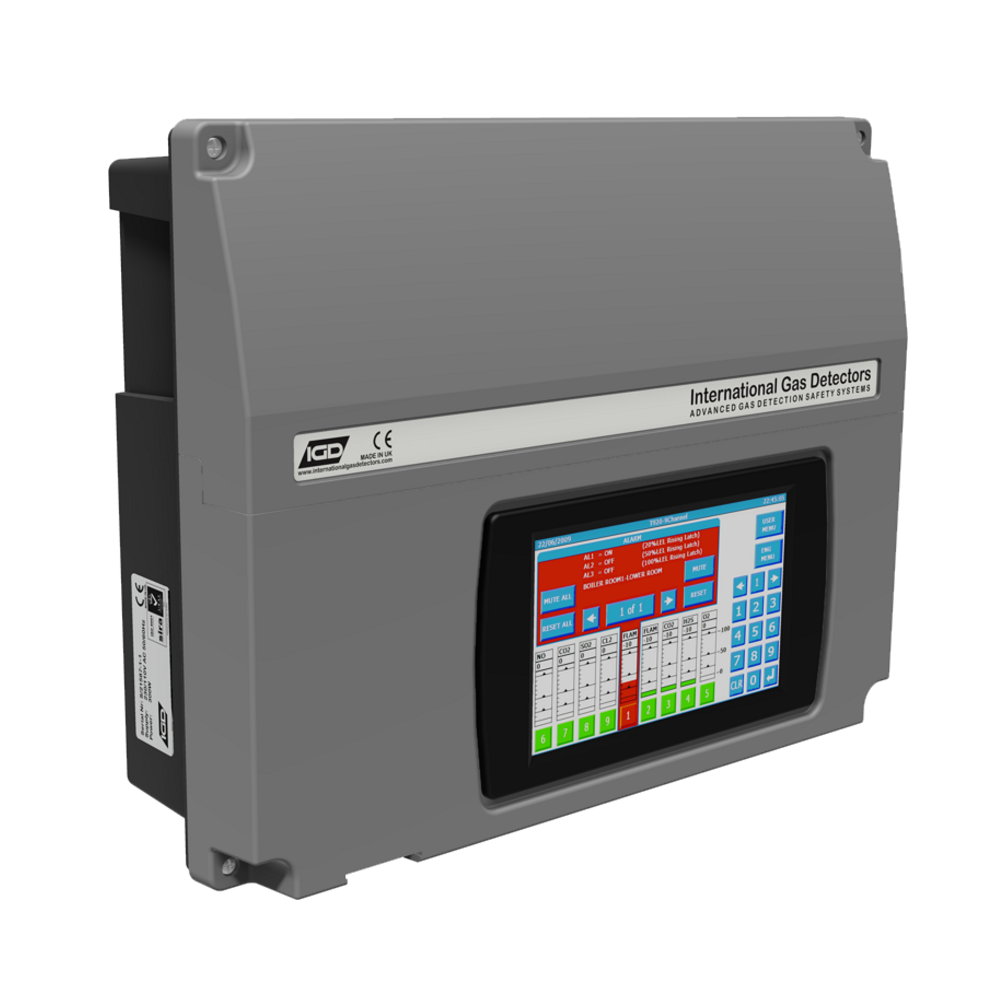

Product Image

Tocsin 920 Control Panel

The Tocsin 920 Control Panel is an 250 channel addressable controller and offers complete ability for user control. The panel can be used as a host unit in conjunction Tocsin 640 and i700 series control panels.

  • Wall, 19” Rack or Panel Mounting Units
  • 110/230V 50/60Hz AC operation
  • 250 Addressable devices as: Relays, Analogue Inputs or Gas Detectors
  • Latest Colour Touch Screen HMI Interface Integrate Other Signal Inputs
  • One Man calibration Function
  • Fully Accessible Modbus
  • Interface Use as a Host Unit In Conjunction With Tocsin 640 or i700 Controllers
  • WAV File Audible Alarms
  • Flexible Alarm Options
  • Attractive ABS Wall Mount Enclosure
The Tocsin 920 is designed for industrial and large commercial installations and is commonly used in following applications -
  • Plant rooms
  • Car parks
  • Boiler Rooms
  • Swimming pools
  • Gas bottle stores
  • Laboratories
  • Schools, Colleges and Universities
  • Shopping Malls
  • Industrial & Manufacturing Sectors
  • Medical Gas Application
  • Chemical process industry and petrochemical plants
  • Marine Application
  • Refrigeration and Air Conditioning Plants

Power

110/230V AC 50/60Hz 150W

24V DC Option
Construction ABS
Display 7" Full Color HMI 800x480
User Touch Screen
Outputs

8 x configurable SPCO relays

(7A non conductive load Expandable using Additional relay Cards)

1 x RS232/485 Comms Link (Modbus)
Inputs Up to 8 x RS485 loops (Expandable Using Additional Hubs)
Temperature -5 to 55 Deg C
Humidity 0-95% RH Non-Condensing
Sealing IP54
Mounting Wall Mount, 3U Rack Mount





Main Product

Product Code Description
TOC-920-230 T920 250-Channel Control Panel 110/230V AC 150W - Wall Mount
TOC-920-24 T920 250-Channel Control Panel 24V DC - Wall Mount
TOC-920-3U T920 250-Channel Control Panel 110/230V AC 150W - 19" 3U Rack Mount

Accessories

Product Code Description
5920301 T920 Controller Modbus Module
5920501 T920 Controller - Relay Card - 8 SPCO Relays - Base Units
5920601 T920 Controller - RS485 Hub Card - 8 RS485 Ports - Base Units
5920701 T920 Controller - Relay Card - 8 SPCO Relays - DIN Rail Mount
5920801 T920 Controller - RS485 Hub Card - 8 RS485 Ports - DIN Rail Mount
5921101 External PSU - DIN Rail Mount 24V DC PSU Module 110/230V AC 50/60Hz
