Product Image

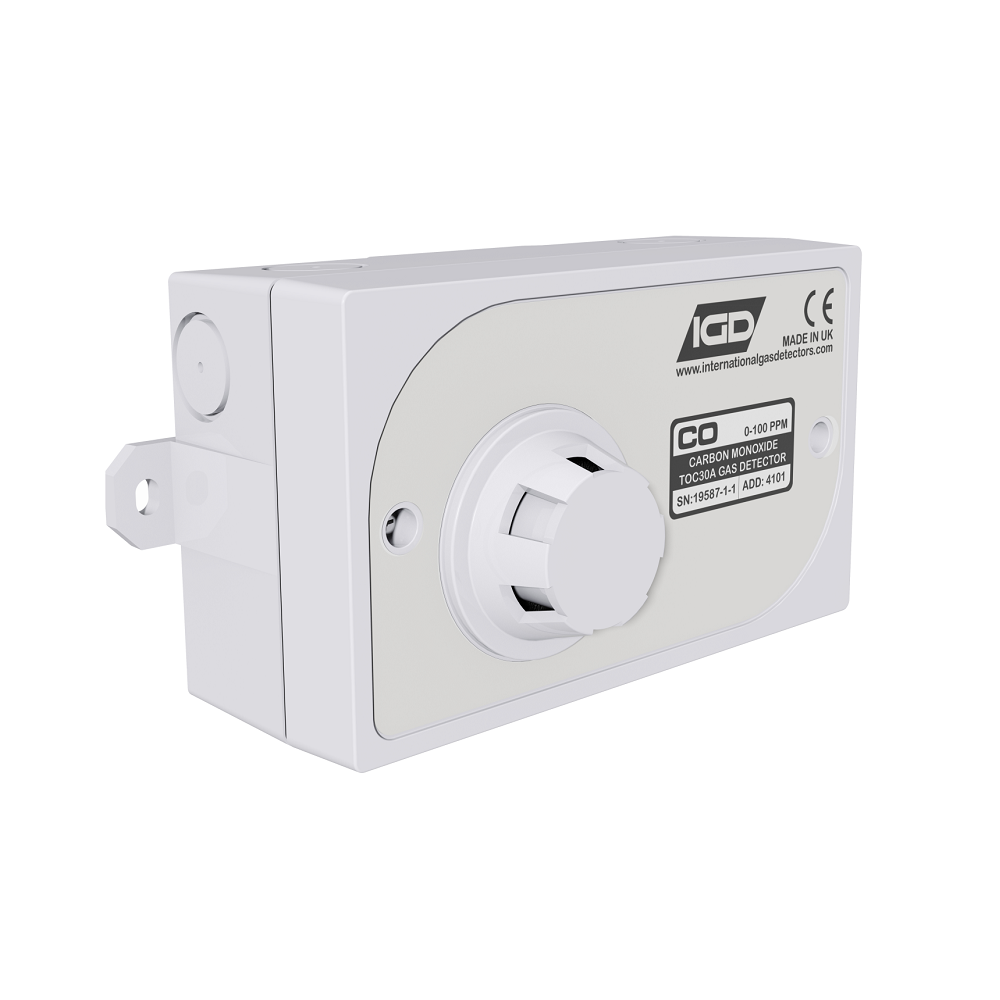

Toc-30 Safe Area Detector

The Toc-30 Series Detector is available in analogue and addressable version. The Toc-30 detector is housed in ABS enclosure for protection against corrosion.

  • 3 Wire 4-20mA and 4 Wire Addressable
  • Standard 2 Gang Pattress Mount
  • Dado Mount or Wall Mount
  • Pre-calibrated sensors
  • In-Service Calibration Possible
  • Replaceable Sensor

Power 18-28V DC (Loop Powered)
Construction ABS
Output

4 Wire Addressable

4-20mA Linear Output for calibrated gas and range
General Accuracy ±2% of Range
Temperature -5 to 55 Deg C
Humidity 0-95% RH Non-Condensing
Sealing IP54
Mounting Wall Mount





T30 Analogue Detectors

Product Code Description
TOC-30-BCL3 Toc-30 Analogue Detector - Boron Trichloride - 0-10PPM
TOC-30-CL2 Toc-30 Analogue Detector - Chlorine - 0-20PPM
TOC-30-CO Toc-30 Analogue Detector - Carbon Monoxide - 0-100PPM
TOC-30-H2 Toc-30 Analogue Detector - Hydrogen - 0-1000PPM
TOC-30-H2S Toc-30 Analogue Detector - Hydrogen Sulphide - 0-50PPM
TOC-30-HCL Toc-30 Analogue Detector - Hydrogen Chloride - 0-10PPM
TOC-30-HCO Toc-30 Analogue Detector - Carbon Monoxide - 0-2000PPM
TOC-30-NH3 Toc-30 Analogue Detector - Ammonia - 0-500PPM
TOC-30-NO Toc-30 Analogue Detector - Nitric Oxide - 0-100PPM
TOC-30-NO2 Toc-30 Analogue Detector - Nitrogen Dioxide - 0-20PPM
TOC-30-O2 Toc-30 Analogue Detector - Oxygen - 0-25%VOL
TOC-30-SIH4 Toc-30 Analogue Detector - Silane - 0-10PPM
TOC-30-SO2 Toc-30 Analogue Detector - Sulphur Dioxide - 0-5PPM
TOC-31-CO Toc-30 Analogue Detector - Carbon Monoxide - 0-100PPM

*We offer sensors for more than 400 gases

T30 Addressable Detectors

Product Code Description
TOC-30A-BCL3 Toc-30 Add. Detector - Boron Trichloride - 0-10PPM
TOC-30A-CH4 Toc-30 Add. Detector - IR Methane - 0-100%LEL
TOC-30A-CL2 Toc-30 Add. Detector - Chlorine - 0-20PPM
TOC-30A-CO Toc-30 Add. Detector - Carbon Monoxide - 0-100PPM
TOC-30A-CO2 Toc-30 Add. Detector - Carbon Dioxide - 0-5%VOL
TOC-30A-H2 Toc-30 Add. Detector - Hydrogen - 0-1000PPM
TOC-30A-H2S Toc-30 Add. Detector - Hydrogen Sulphide -0-50PPM
TOC-30A-HCL Toc-30 Add. Detector - Hydrogen Chloride - 0-10PPM
TOC-30A-HCO Toc-30 Add. Detector - Carbon Monoxide - 0-2000PPM
TOC-30A-LCO2 Toc-30 Add. Detector - IR Carbon Dioxide - 0-5000PPM
TOC-30A-N2O Toc-30 Add. Detector - Nitrous Oxide - 0-1000PPM
TOC-30A-NH3 Toc-30 Add. Detector - Ammonia - 0-500PPM
TOC-30A-NO Toc-30 Add. Detector - Nitric Oxide - 0-100PPM
TOC-30A-NO2 Toc-30 Add. Detector - Nitrogen Dioxide - 0-1000PPM
TOC-30A-O2 Toc-30 Add. Detector - Oxygen - 0-25%VOL
TOC-30A-SIH4 Toc-30 Add. Detector - Silane - 0-10PPM
TOC-30A-SO2 Toc-30 Add. Detector - Sulphur Dioxide - 0-10PPM
TOC-31A-CO Toc-31 Add. Detector - Carbon Monoxide - 0-100PPM
TOC-31A-KIT Toc-31A Add. Detector - Methane w/Ceiling Adapter, Collector Cone & Remote Gassing
TOC-31A-PHC Toc-31A 4-20mA/Add. Detector - Flammable Gases External Sensor - 0-100% LEL
TOC-30A-PHC Toc-30A 4-20mA/Add. Detector - Flammable Gases Internal Sensor - 0-100% LEL

*We offer sensors for more than 400 gases
