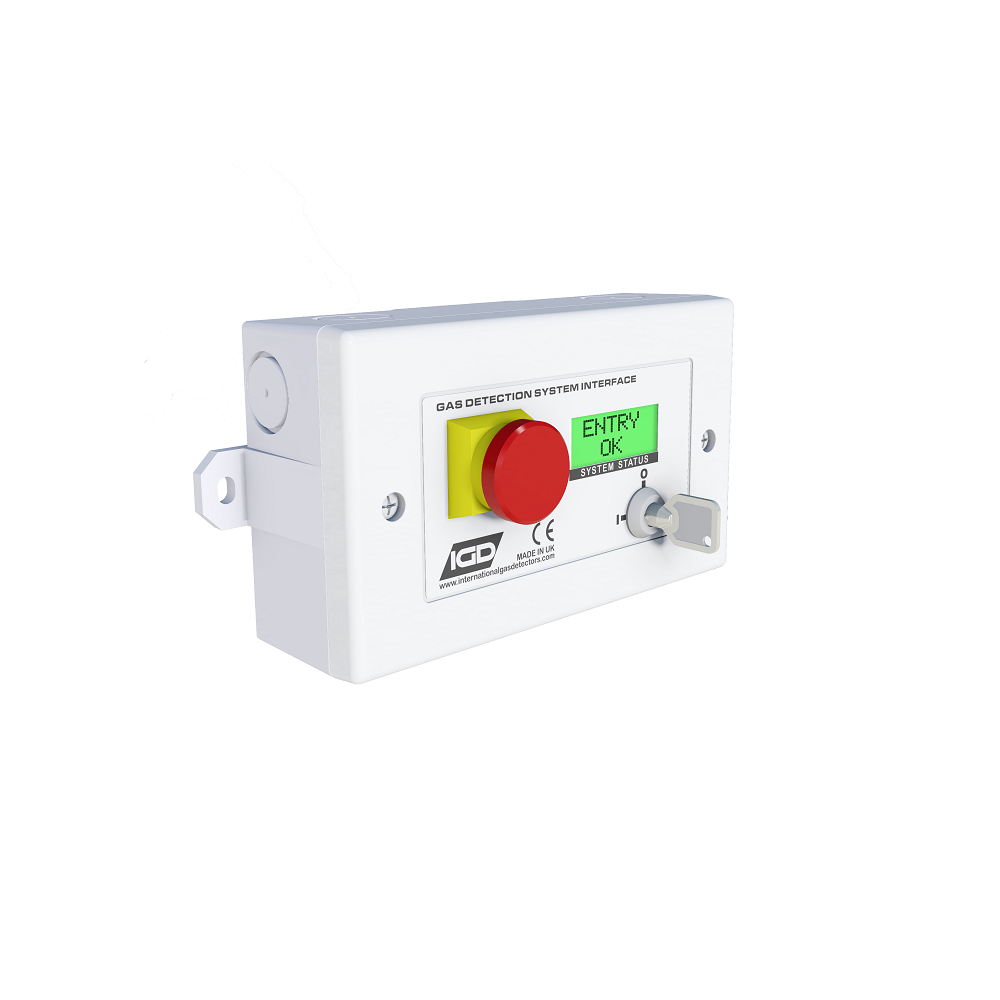

Toc-30 Annunciator

The Toc-30 Series Annunciator is an addressable display interface with added features such as message and color alarm display with options of E-stop, Key Switch or other inputs.

Can be used for Door Entry Control
Use Digital Inputs interface with other system
Color Change Display - Green (No Alarm), Flashing Red (Alarm), Amber (Fault), Blue (System Menu)

Voltage	12-28V DC
Construction	ABS
Display	2 x 8 Programmable LCD with RGB Backlight
Communication	RS485 Data Highway - 4-Core Cable
Relay	5A Non Inductive Loads 230V AC
Inputs	3 Off
Sounder	85dB
Temperature	-5 to 55 Deg C
Humidity	0-95% RH Non-Condensing
Sealing	IP65
Mounting	Wall Mount

Annunciator

Product Code	Description
TOC-30A-ANN	Toc-30 Annunciator Base Unit
TOC-30A-AN1	Toc-30 Annunciator with E-Stop
TOC-30A-AN2	Toc-30 Annunciator with Key Switch
TOC-30A-AN3	Toc-30 Annunciator with Key Switch & E-Step

Annunciator with Detector

Product Code	Description
TOC-30A-APP	Toc-30 Annunciator Base Unit with Flammable Detector
TOC-30A-AP1	Toc-30 Annunciator with E-Stop with Flammable Detector
TOC-30A-AP2	Toc-30 Annunciator with Key Switch with Flammable Detector
TOC-30A-AP3	Toc-30 Annunciator with Key Switch & E-Stop with Flammable Detector
