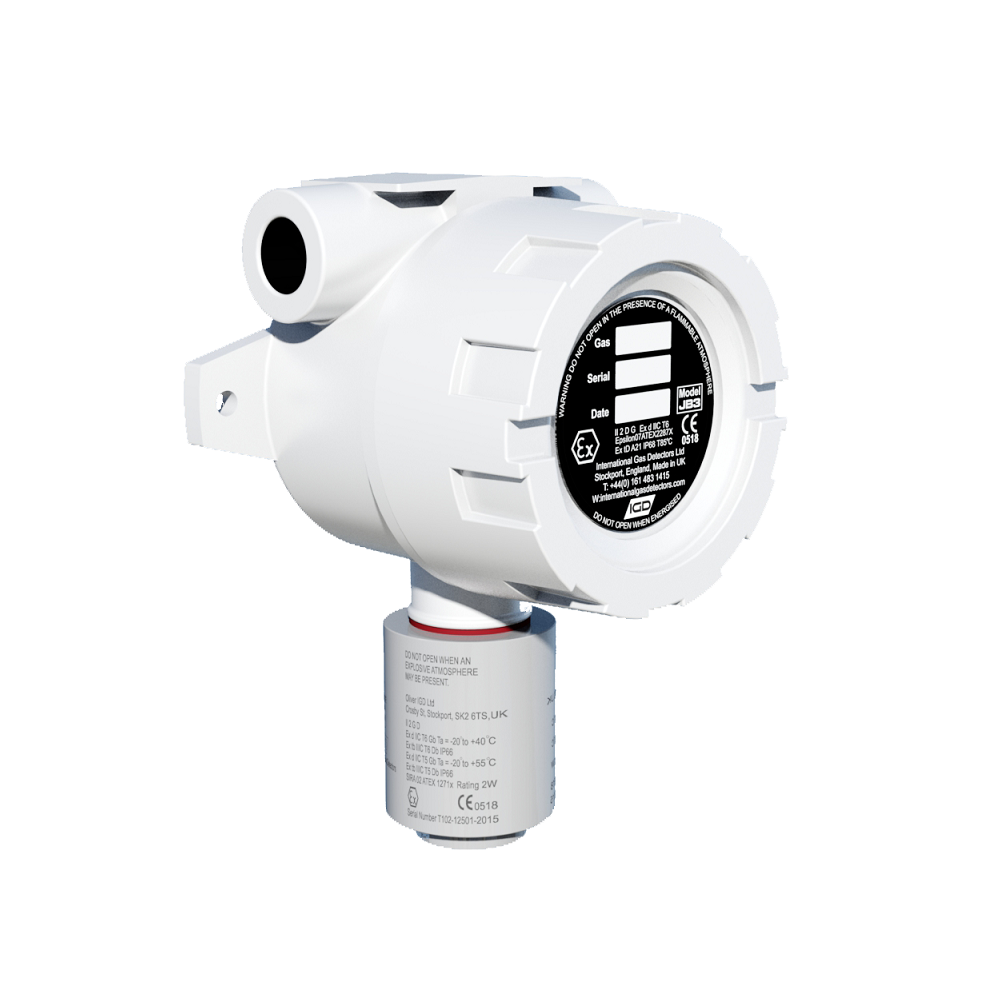

Tocsin 102 ATEX Detector

The Tocsin 102 Series is available in analogue and addressable version and housed in ATEX certified body.

  • 4-Wire addressable technology or 4-20mA Analogue output
  • Pre-calibrated sensors
  • In-Service Calibration Possible
  • Replaceable Sensor

Power 18-32V DC
JB Housing Copper Free Aluminium Alloy Epoxy Coated
Sensor Housing Stainless Steel 316 S16
Output

4 Wire Addressable

4-20mA Linear Output for calibrated gas and range
Temperature -10 to 60 Deg C
Humidity 15-90% RH Non-Condensing
Sealing IP66
Mounting Wall Mount





T102 Analogue Detectors

Product Code Description
5055801 T102 Analogue Detector - Silane Sensor (SiH4) - 0-20PPM
5102001 T102 Analogue Detector - Ammonia (NH3) - 0-5000PPM
5105501 T102 Analogue Detector - Hydrogen Sulphide (H2S) - 0-50PPM
5105502 T102 Analogue Detector - Hydrogen Sulphide (H2S) - 0-500PPM
5105505 T102 Analogue Detector - Hydrogen Sulphide (H2S) - 0-5000PPM
5105601 T102 Analogue Detector - Ammonia (NH3) - 0-5000PPM
5106001 T102 Analogue Detector - Ethylene Oxide (ETO) - 0-20PPM
5106101 T102 Analogue Detector - Hydrogen Chloride (HCL) - 0-5PPM
5106201 T102 Analogue Detector - Ozone (03) - 0-2PPM
5106250 T102 Analogue Detector - Ozone (03) - 0-2PPM (Safe Area Operation)
5106301 T102 Analogue Detector - Nitrogen Dioxide (NO2) - 0-20PPM
5106401 T102 Analogue Detector - Sulphur Dioxide (S02) - 0-5PPM
5106601 T102 4-20mA Safe Area Detector - Chlorine (CL2) - 0-5PPM Safe Area Only
5106702 T102 Analogue Detector - Oxygen (02) - SPE 0-25% V/V
5106801 T102 Analogue Detector - Nitric Oxide (NO) - 0-50PPM
5106901 T102 Analogue Detector - Hydrogen (H2) - 0-2000PPM
5107001 T102 Analogue Detector - Ammonia (NH3) - 0-100PPM
5107101 T102 Analogue Detector - Carbon Monoxide (CO) - 0-100PPM
5107152 T102 Analogue Detector - Carbon Monoxide (CO) - 0-4000PPM
5107180 T102 Analogue Detector - Carbon Monoxide (CO) - 0-20PPM
5107201 T102 Analogue Detector - Hydrogen Cyanide (HCN) - 0-10PPM
5107901 T102 Analogue Detector Infra-Red - Flammable Gases - 0-100%LEL
5107902 T102 Analogue Detector Infra-Red - Methane (CH4) - 0-100%VOL
5109001 T102 Analogue Detector Infra-Red - Nitrous Oxide (N2O) - 0-1000PPM
5112701 T102 Analogue Detector Infra-Red - Carbon Dioxide (CO2) - 0-5%V/V
5112702 T102 Analogue Detector Infra-Red - Carbon Dioxide (CO2) - 0-100%V/V
5112801 T102 Analogue Detector - Methanol (CH3OH) - 0-200PPM
5219701 T102 Analogue Detector - Hydrogen Flouride (HF) - 0-10PPM
5921201 T102 Analogue Detector - Isobutylene PID Sensor Low Range 5PPB to 50PPM
5921301 T102 Analogue Detector - Isobutylene PID Sensor 100PPB to 6000PPM
5926001 T102 Analogue Detector - C2HO - 0-5PPM

*We offer sensors for more than 400 gases

T102 Addressable Detectors

Product Code Description
5055801A T102 Add. Detector - Silane Sensor (H4Si) - 0-20PPM
5102001A T102 Add. Detector - Ammonia (NH3) - 0-5000PPM
5105501A T102 Add. Detector - Hydrogen Sulphide (H2S) - 0-50PPM
5105502A T102 Add. Detector - Hydrogen Sulphide (H2S) - 0-500PPM
5105601A T102 Add. Detector - Ammonia (NH3) - 0-5000PPM
5106001A T102 Add. Detector - Ethylene Oxide (ETO) - 0-20PPM
5106101A T102 Add. Detector - Hydrogen Chloride (HCL) - 0-5PPM
5106201A T102 Add. Detector - Ozone (03) - 0-2PPM
5106250A T102 Add. Detector - Ozone (03) - 0-2PPM (Safe Area Operation)
5106301A T102 Add. Detector - Nitrogen Dioxide (NO2) - 0-20PPM
5106401A T102 Add. Detector - Sulphur Dioxide (S02) - 0-5PPM
5106601A T102 Add. Safe Area Detector - Chlorine (CL2) - 0-5PPM Safe Area Only
5106702A T102 Add. Detector - Oxygen (02) SPE - 0-25% V/V
5106801A T102 Add. Detector - Nitric Oxide (NO) - 0-50PPM
5106901A T102 Add. Detector - Hydrogen (H2) - 0-2000PPM
5106902A T102 Add. Detector - Hydrogen (H2) - 0-2000PPM No JB -Special Housing
5107001A T102 Add. Detector - Ammonia (NH3) - 0-100PPM
5107101A T102 Add. Detector - Carbon Monoxide (CO) - 0-100PPM
5107152A T102 Add. Detector - Carbon Monoxide (CO) - 0-4000PPM
5107180A T102 Add. Detector - Carbon Monoxide (CO) - 0-20PPM
5107201A T102 Add. Detector - Hydrogen Cyanide (HCN) - 0-10PPM
5107901A T102 Add. Detector Infra-Red - Flammable Gases - 0-100%LEL
5108101 T102 Add. Detector Thermal Conductivity
5109001A T102 Add. Detector Infra-Red - Nitrous Oxide (N2O) - 0-1000PPM
5112701A T102 Add. Detector Infra-Red - Carbon Dioxide (CO2) - 0-5%V/V
5131401ATEX T102 4-20mA/Add. Ex-Proof Detector - Flammable Gases with JB - 0-100%LEL
5131402ATEX T102 4-20mA/Add. Ex-Proof Detector - Flammable Gases with SS JB - 0-100%LEL
5219701A T102 Add. Detector - Hydrogen Flouride (HF) - 0-10PPM
5921201A T102 Add. Detector - Isobutylene PID Sensor Low Range 5PPB to 50PPM
5921301A T102 Add. Detector - Isobutylene PID Sensor 100PPB to 6000PPM
5925001 T102 Anl/Add. Ex-Proof Detector - Type B Flammable Gases
5926001A T102 4-20mA/Add. Ex-Proof Detector - C2HO - 0-5PPM

*We offer sensors for more than 400 gases
