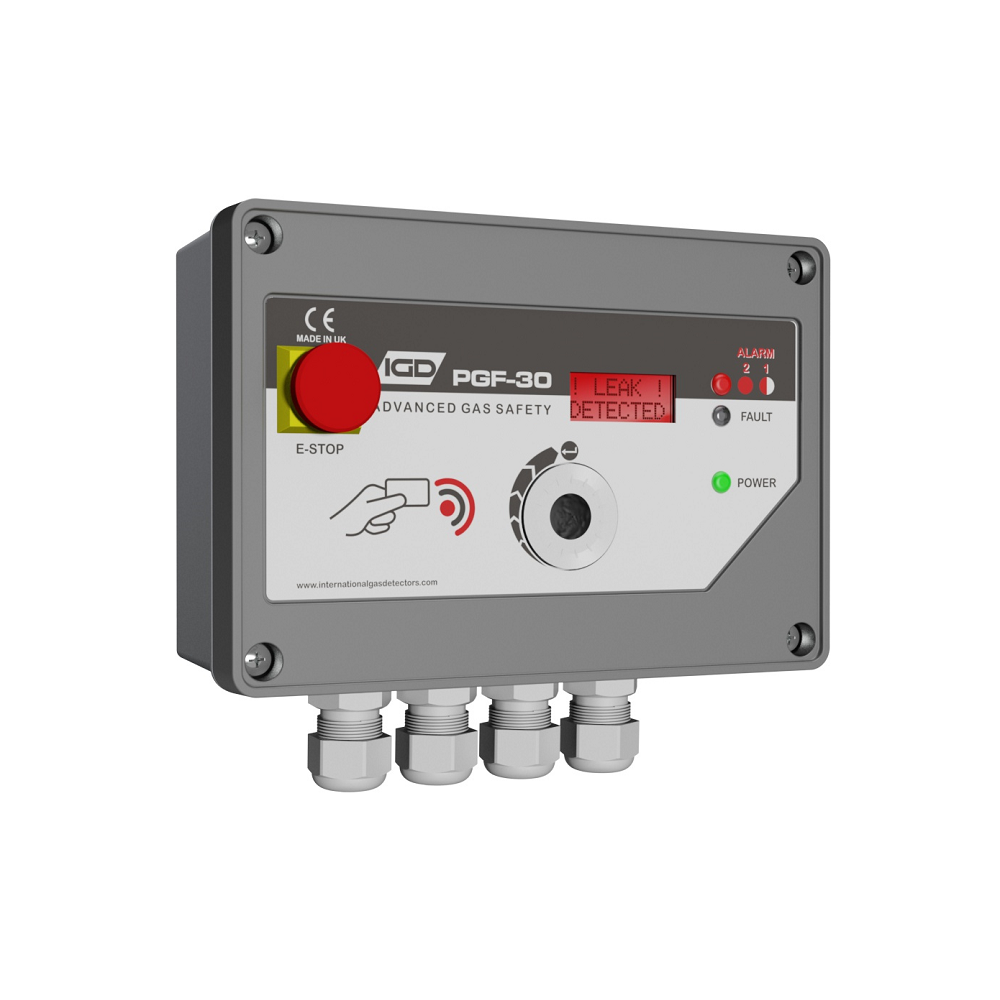

Product Image

The PGF-30 Controller is an RFID secure Gas Proving, Ventilation Control and Gas Detection contoller equipped with E-stop switch, relay outputs, analogue outputs and RS485 port. The controller ensures gas pressure and flow integrity and can operate/initiate fans in case of build up of CO2.

  • RFID to Initiate the gas proving cycle & to control access to the system
  • Wall or Panel Mounting
  • Relay Outputs, 4-20mA Outputs and RS485 Modbus as Standard
  • E-Stop Input (System Configurable)
  • Dedicated Interlock to Fire Systems (System Configurable)
  • Displays current live gas readings and pressure readings
  • Battery Backup Option

Power

110/230V AC 50/60Hz 25W

24V DC Option

Construction ABS
Display

2 Lines x 8 Digit LCD Display

Multi-Colour Backlight (Red-Alarm, Yellow-Fault, Blue-Normal)

User IGD Jog Wheel Option Select
Outputs

3 off SPCO Relays 4A Non-Inductive User Configurable

1 off 4-20mA Linear Output User Configurable

Output I/O

Sounder 80dB @ 100mm (Mutable)

RS485 Port Modbus

Dedicated E-Stop Input

Dedicated Fire System Interlock

Inputs

Up to 24 off Addressable Series Detectors or I/O Modules

Note: external Booster PSU may be required

Temperature -5 to 55 Deg C
Humidity 0-95% RH Non-Condensing
Sealing IP54
Mounting Wall Mount, Panel Mount Kit Option, Duct Mount Kit Option
Weight 840g





Main Product

Product Code Description
PGF-30-RFID-230 PGF-30 Controller 110/230V AC 25W
PGF-30-RFID-24 PGF-30 Controller 24V DC
5927001 Pressure Transducer 4-20mA O/P - 0-50mBar
5928701 Pressure Transducer 4-20mA O/P - 0-10Bar
5928801 Pressure Transducer 4-20mA O/P - 0-40Bar
5927051 Flow Transducer 4-20mA O/P - 0-20M/s

Accessories/Spares

Product Code Description
TOC-RFID-USER PGF30 Replacement RFID Cards
PGF-30-DSP PGF30 Contoller Display Assembly - Spare
