Technogas Equipments Est.

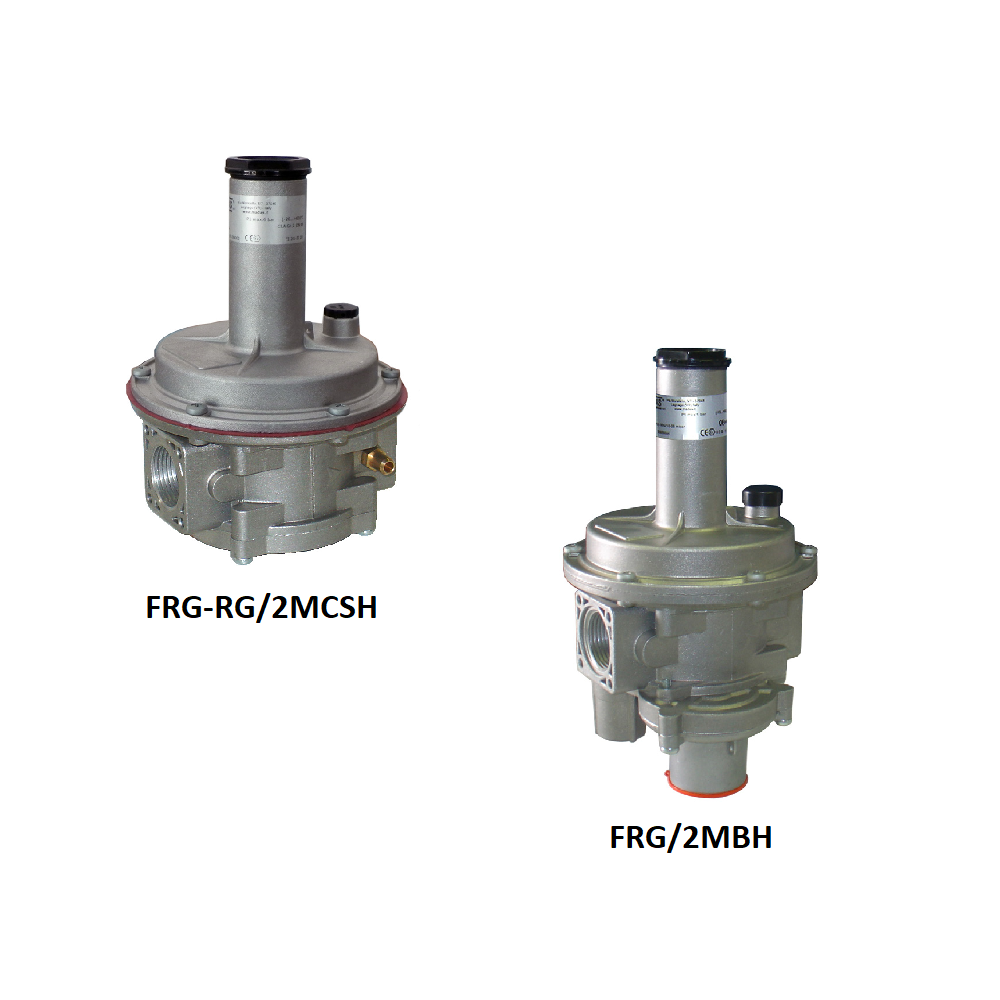

RG/2MCSH - FRG-RG/2MBH

Downstream pressure operating device for maximum inlet pressure of 0.5-5bar and range of high outlet pressure options with safety slam shut mechanism and/or differential relief valve.

Use	non-aggressive gases of the three families (dry gases)
Room Temperature	-15 to +60 °C
Max. Operating Pressure	0.5-5Bar
Safety lock closing time	< 1s
Thread Connections Sizes	DN15 to DN50
Flange Connection Sizes	DN32 to DN100
Model Identification	RG/2MCSH - Gas Regulator with Relief Valve RG/2MBH - Gas Regulator with Slam Shut & Relief Valve
