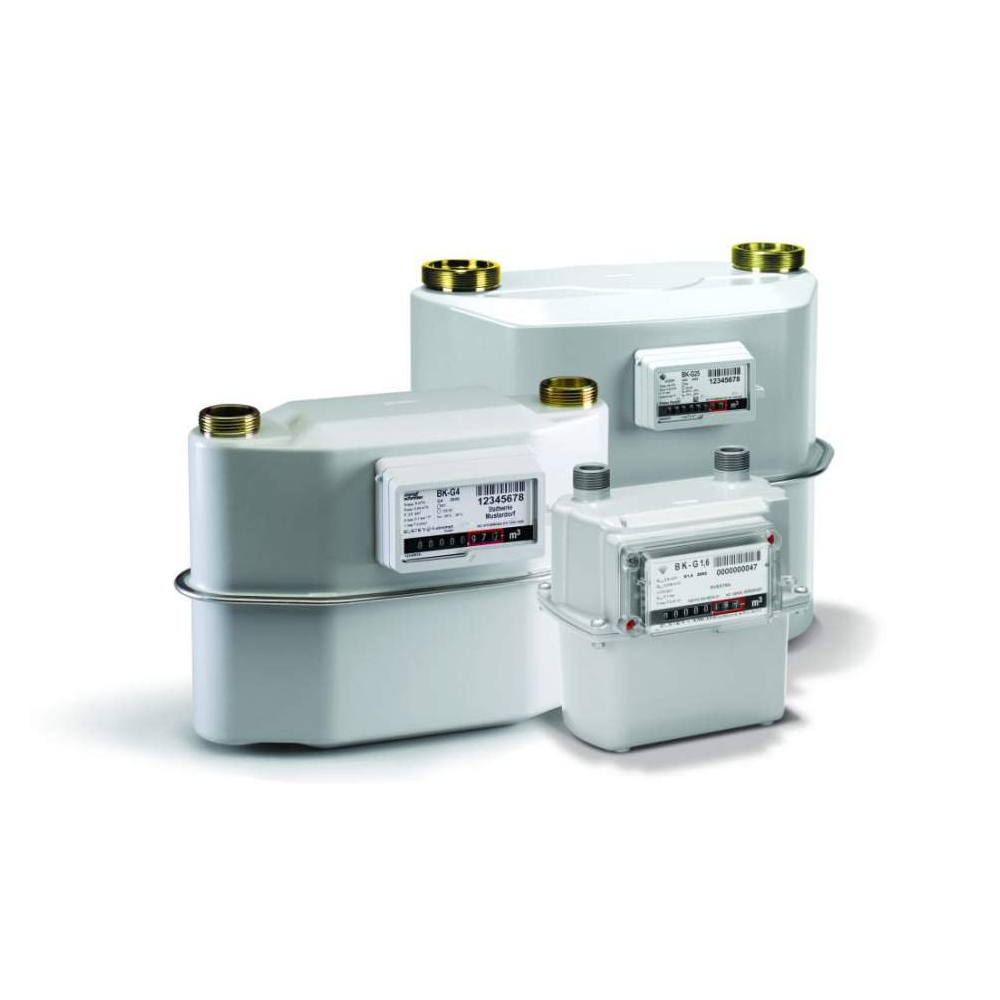

BK-G1.6 to BK-G100 Diaphragm Gas Meters

Diaphragm gas meters for residential and commercial installations.

Gases

Natural Gas, LPG

Case Material

Steel

Aluminium

Temperature

-10 to +40 Deg C

Steel Housing Diaphragm Gas Meters

Product Code	Description
60011-E-301	G1.6 Meter Q. max - 2.5m3/h P. Max - 0.5Bar WB-110mm IN/OUT - DN 32
60011-E-303	G2.5 Meter Q. max - 4m3/h P. Max - 0.5Bar WB-110mm IN/OUT - DN 32
60011-E-305	G4 Meter Q. max - 6m3/h P. Max - 0.75Bar WB-110mm IN/OUT - DN 32
60011-E-307	G6 Meter Q. max - 10m3/h P. Max - 0.5Bar WB-250mm IN/OUT - DN 32
60011-E-309	G10 Meter Q. max - 16m3/h P. Max - 0.5Bar WB-250mm IN/OUT - DN 32
60011-E-310	G10 Meter Q. max - 16m3/h P. Max - 0.5Bar WB-280mm IN/OUT - DN 50
60011-E-313	G16 Meter Q. max - 25m3/h P. Max - 0.5Bar WB-280mm IN/OUT - DN 50
60011-E-314	G25 Meter Q. max - 40m3/h P. Max - 0.5Bar WB-335mm IN/OUT - DN 65

Aluminium Housing Diaphragm Gas Meters

Product Code	Description
60011-E-302	G1.6 Meter Q. max - 2.5m3/h P. Max - 1.5Bar WB-110mm IN/OUT - DN 32
60011-E-304	G2.5 Meter Q. max - 4m3/h P. Max - 1.5Bar WB-110mm IN/OUT - DN 32
60011-E-306	G4 Meter Q. max - 6m3/h P. Max - 2Bar WB-110mm IN/OUT - DN 32

Pulser Output

Product Code	Description
60011-E-311	Low Frequency Pulser - IN-Z761

Downloads

G1.6 to G4 - Datasheet	G10 & G16 - Datasheet
G25 - Datasheet	G40 to G100 - Datasheet
