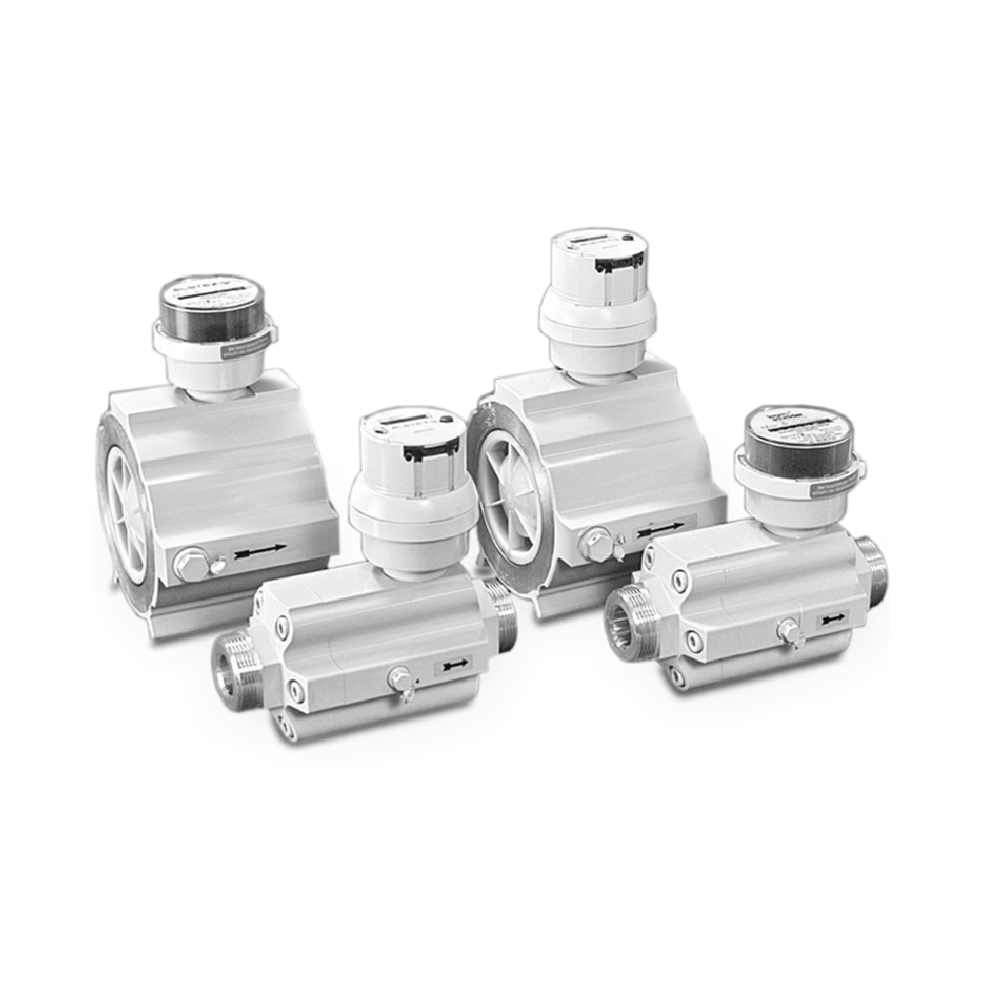

QA/QAe Quantometer

Quantometers are used for industrial application wherein the gas flowing through the meter sets a turbine wheel in motion. The number of revolutions of the wheel is proportional to the volume that has passed through the meter.

Gases	Natural Gas, LPG
Flow Ranges	1.6 –1600 m3/h
Case Material	Aluiminium
Temperature	-10 to +60 Deg C (QA) -10 to +50 Deg C (QAe)

Mechanical Display Quantometer

Product Code	Description
60011-E-101	QA10 - 1.6-16m3/h P. Max - 4Bar INT/OUT: DN 25
60011-E-102	QA16 - 2-25m3/h P. Max - 4Bar INT/OUT: DN 25
60011-E-103	QA25 - 2.5-40m3/h P. Max - 4Bar INT/OUT: DN 25
60011-E-104	QA40 - 3.3-65m3/h P. Max - 4Bar INT/OUT: DN 40
60011-E-105	QA40 - 5-65m3/h P. Max - 4Bar INT/OUT: DN 40
60011-E-106	QA65 - 6-100m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 50
60011-E-107	QA100 - 10-160m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 80
60011-E-108	QA160 - 13-250m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 80
60011-E-109	QA250 - 20-400m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 100
60011-E-110	QA400 - 32-650m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 100
60011-E-111	QA400 - 32-650m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 150
60011-E-112	QA650 - 50-1000m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 150
60011-E-113	QA1000 - 80-1600m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 150

Electronic Display Quantometer

Product Code	Description
60011-E-201	QAe10 - 1.6-16m3/h P. Max - 4Bar INT/OUT: DN 25
60011-E-202	QAe16 - 2-25m3/h P. Max - 4Bar INT/OUT: DN 25
60011-E-203	QAe25 - 2.5-40m3/h P. Max - 4Bar INT/OUT: DN 2
60011-E-204	QAe40 - 3.3-65m3/h P. Max - 4Bar INT/OUT: DN 40
60011-E-205	QAe40 - 5-65m3/h P. Max - 4Bar INT/OUT: DN 40
60011-E-206	QAe65 - 6-100m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 50
60011-E-207	QAe100 - 10-160m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 80
60011-E-208	QAe160 - 13-250m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 80
60011-E-209	QAe250 - 20-400m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 100
60011-E-210	QAe400 - 32-650m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 100
60011-E-211	QAe400 - 32-650m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 150
60011-E-212	QAe650 - 50-1000m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 150
60011-E-213	QAe1000 - 80-1600m3/h P. Max - 16Bar (PN16)/20Bar (ANSI 150) IN/OUT: DN 150
